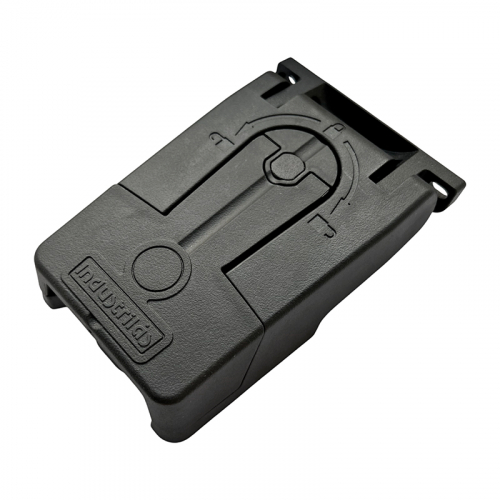

Hinge Lock Industrilas 2651-440000-00, polyamide, 123х90 mm, 180°, black

The Hinge Lock Industrilas 2651-440080-00 is a modern industrial hardware product for insulated and sealed doors. It belongs to the Klima-Flex™ series of solutions for heating, ventilation and air conditioning (HVAC) systems.

Applications of a lock with a latch-type handle

• For hermetically sealed spaces in HVAC systems.
• Particularly useful in areas where access is difficult and the technical door cannot be fully opened. In this case, the installation of the products makes it possible not only to open the door, but to dismantle it completely so that maintenance can be carried out easily.

Features of the lock-shaped hinge

• If the products are used as latches on one side only, the door will open to the left or right side.
• When using products as latches on both sides, the door can be removed.
• Before opening the door of the chamber to be serviced, it is necessary to relieve the overpressure in the chamber cavity. To do this, lift the latch handle and wait for a while, the air will escape with a slight noise. Only then can the door be opened or dismantled.
• To achieve maximum effect, the products should be installed symmetrically in each corner of the door, i.e. at least 4 pieces per door.
• The hinge mechanism of the hinge lock can be moved relative to its body, which facilitates installation.

Advantages of the lock hinge

• One product can be used both as a lock and a hinge due to its special design.
• No key is required when operating as a lock with limited access by maintenance personnel. Secure locking is ensured by the latch design of the lock as a latch.
• Provides tight closing of the door due to internal compression.
• Can be installed on doors made of metal sheet of any thickness: from thin to thick.
• Provides convenient installation by adjusting the movement in three dimensions.

Characteristics of Industrilas 2651-440000-00

Material

handle - polyamide,

body - polyamide,

hinge pin - 304 stainless steel.

Insert type: without insert.

Opening angle: 180°.

Swivelling angle of the handle for hinge removal: 90°.

Compression: internal 3-6 mm, due to the seal inside*.

Vertical offset: 0 mm.

Compliance with standards:

• vibration resistance according to DIN EN 61373,
• tightness according to DIN EN 1886, level L1

Complete

Without spanner, without mounting plate.

*When preparing the mounting holes for installation, the size of the seal must be taken into account (select a seal from the Industrilas Klima-Flex series).

Available as an option for this product (to order):

• different types of inserts: cylindrical English key, butterfly, square, triangle;
• metal mounting plate. It is used to reinforce the mounting point in case of a metal door made of thin sheet metal (0.65 mm). It allows you to save on the cost of the door by reducing its thickness, but at the same time to ensure tightness of its closing;
• hexagon key. Provides additional locking, if necessary.
