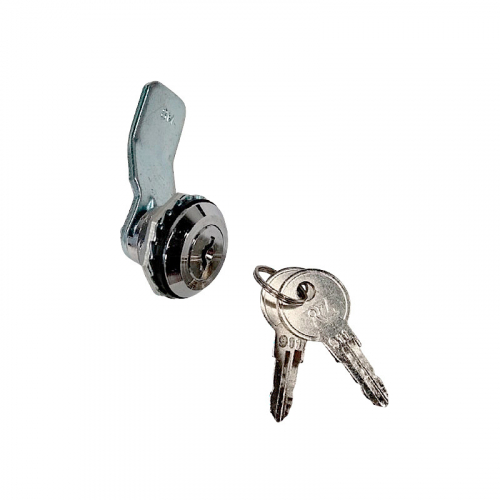

Floor panel lock RZ L181.А.10-10845, Zn alloy, ins. one key, h=8 мм, L=46 мм, with external stop, 2 keys

Floor panel lock RZ L181.А.10-10845 is a locking product for metal bodies. It refers to hardware for industrial electrical equipment.

Floor panel lock RZ L181.А.10-10845 video review

Application of the lock for electrical panels

The product is installed on metal cabinets, drawers and structures, namely:

• switchboards, floor boards, control panels,
• electrical cabinets - floor and suspended, free-standing and modular,
• transformer substations (internal panels),
• equipment for the food industry,
• medical equipment.

Advantages of the lock for switchboard equipment

• Reliable: made entirely of metal.
• Equipped with a locking ring for a tighter fit of the lock to the door.

Characteristics RZ L181.А.10-10845

Body and insert material: zinc alloy, chrome plated.

Insert type: for one key.

Cam bend: 8 mm.

Cam bend angle: 45°.

Cam length L: 46 mm.

Thread height: 18 mm.

Seating hole: 20x22 mm.

Locking the key in the open position: no.

Swivelling angle: 90°.

With a hole for the external stop.

Complete set of delivery

2 metal keys with RZ logo.

Buy a floor panel lock at the best wholesale price you can in our online shop RZ-market. Make an application in the cart.

We will deliver to Europe.
