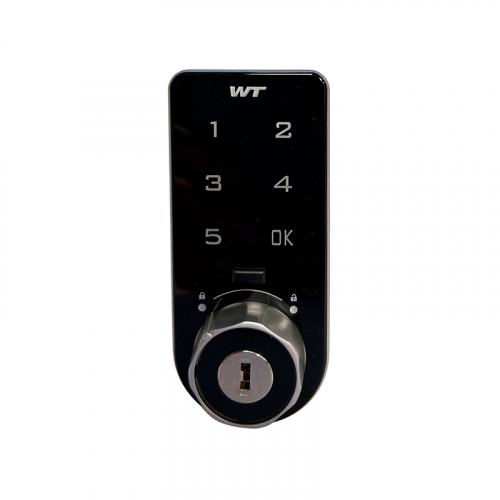

Digital electronic lock RZ M-1607-00KO, plastic, 4-digital code, vertical, on thickness 0.6-20 mm, black

Digital electronic lock RZ M-1607-00KO is a locking device that uses a manually typed code on the electronic panel of the device for locking.

Lock features

• Private and public modes.
• Allow 4 times entering an incorrect password, then a warning sound is emitted.
• Power shortage indication ‘Replace the battery’ (red LED). The lock will not open if the power supply is insufficient.
• Unlock indicator (the lock is open) - green LED.
• 3 types of password: permanent, temporary, false pin-code.

Application of digital electronic lock

Wooden and metal cabinets, lockers.

• Office furniture.
• Clothes lockers / lockers in gyms, fitness centres, swimming pools, hotels, educational institutions, hospitals, etc.

Advantages of the electronic locker lock

• Modern design: mirror set panel.
• Can be opened either by password or mechanical key.
• Can be powered externally if required.
• Protection against peeping by means of a false pin code.
• Great secrecy (password combination of 5 digits).

Characteristics of RZ M-1607-00KO

Case material: plastic.

Insert material: zinc alloy.

Cam material: galvanised steel.

Cam bend h: 0 mm.

Dimensions: 96 x 42.

Dial pad: 5 digits and OK button.

Power supply: 2 AAA finger batteries.

Battery life: 10000 openings/closures.

Cam rotation angle: 90°.

Operating humidity (relative humidity): from 10 to 85%.

Operating temperature: -25 ... +55 °C.

Fastening: fasteners.

Door thickness: 0.6 - 20 mm.

Installation orientation: vertical.

Set

Without batteries. Face plate and mating part. Instructions in Chinese. Straight cam. Mechanical folding key with plastic head and metal needle for password reset.

To order and buy digital electronic lock wholesale, fill out the application form through the cart. Fast delivery across Europe.
