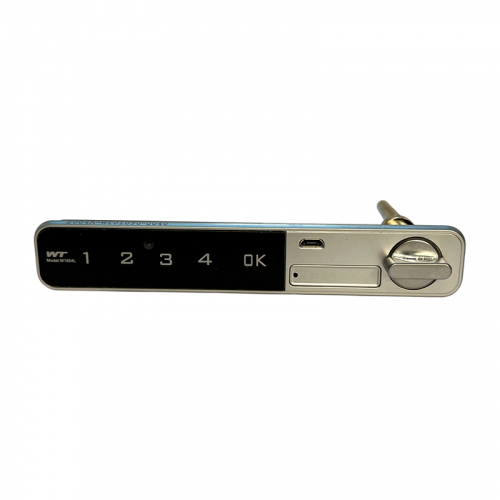

Electronic furniture lock RZ M-1604V, horizontal

Electronic furniture lock RZ M-1604V is a horizontal locking device for furniture, which uses a manually typed code on the device's dial pad for locking.

Features of the digital furniture lock

• Private and public modes.
• Password is entered by both user and manager.
• Possibility to enter an incorrect password 4 times. An audible alarm is then sounded.
• Alarm in case of malfunction.
• Battery charge indicator. Insufficient charge - red light.
• Unlock indicator (green light).

Application of drawer lock

• Wooden and metal drawers in chests of drawers, drawers, cabinet sections. Installed instead of furniture handles.
• Offices.
• Public premises: gyms, fitness centres, swimming pools, hotels, educational institutions, hospitals, etc.
• Advantages of the electronic lock of horizontal type
• Modern design, mirror set panel.
• Convenience of use.
• Unlocking via password. In non-standard cases, opening by means of a mechanical needle.
• Significant secrecy (combinations of 4 digits).

Characteristics of RZ M-1604V

Dimensions: 146 x 25 x 15.5 mm.

Battery: CR2032, 1 pc.

Battery life cycle: 3000 openings/closings.

Dial pad: 4 digits, OK key.

Operating temperature: -25...+55 °С.

Operating humidity (relative humidity): 10-85%.

Swivelling angle: 180°.

Door thickness: 0.6 - 20 mm.

Seat opening 141.8 x 20.8 mm.

Complete set

Without battery. Case complete: face plate with pin and rear part. Cam with 2 pins. Metal needle for inserting the battery. Fasteners 3 pcs. Metal brackets for fixing the rear part 3 pcs. Studs 2 pcs.

To buy electronic furniture lock wholesale, fill out an application through the cart. Fast delivery across Europe.
