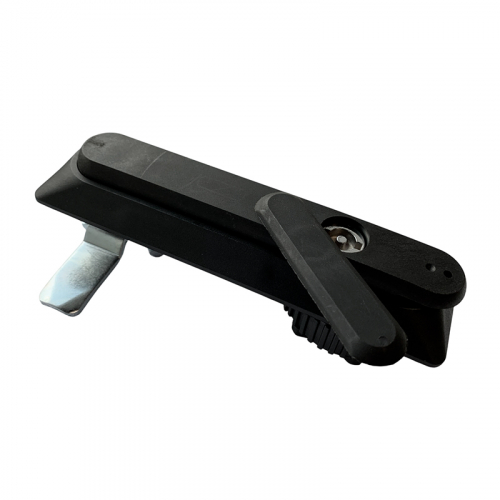

Handle lock for electrical cabinet RZ 301-2-1-02

Handle lock for electrical cabinet RZ 301-2-1-02 belongs to accessories for passive network equipment.

Application of a lock with a rotary knob

• Electrical panels,
• server and telecommunication cabinets,
• transformer substations, etc.

You can buy swinghandles of various type from us.

Pull lock features

• Designed for a three-point locking system.
• Under traction.
• The handle has a folding protective curtain.
• Installation without hardware, due to the clamp. One standard landing is 20x22 mm, the second is round.
• There is a cap on the 45 mm round thread. Performs the function of protection and clamping.

Advantages of a handle lock for an electrical cabinet

1. The solution is more economical than an all-metal product, but at the same time reliable.
2. Safe for leakage current.
3. Universal: left/right opening.

Characteristics RZ 301-2-1-02

Material:

• body, handle, shutter – polyamide, glass-filled;
• crossbar – steel.

Insert type: double bit.

Curtain type: folding.

Bolt type: 3-point.

Cam bend h: 4 mm.

Cam length L: 45 mm.

Landing holes: 20.3x22.3 mm; d. 45 mm.

Center distance: 106 mm.

Degree of protection: IP65.

Black color.

Completeness

Complete product: case, handle with folding shutter, double bit insert, tongue.

Double bit key sold separately.

Rods and other components for this lock can be viewed here.
