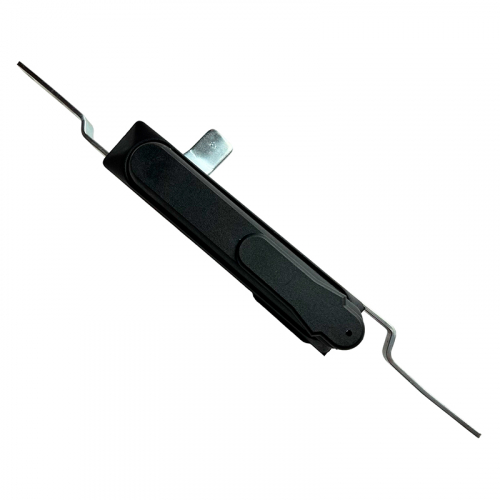

Lock for control unit RZ L925.1.1.3 SW-10845, polyamide, recessed triangular profile, h=8 mm, L=45 mm, for 1 TZP, with mechanism for control rods
| Self service | 8:00 - 17:00 (Kyiv) | Free of charge |
| Sending by DHL | Same day ship out upon receipt of payment to the account before 12:00 p.m. (Kyiv) | From 10.99 € |
| Exchange / Return of the Goods within 7 days |
| The seller guarantees the packaging of the ordered product, which will ensure the integrity and safety of its commercial type. |
| Characteristics | |
| Manufacturer | RZ |
| Country of manufacture | China |
| Body material | Polyamid |
| Сam | Curved |
| Body color | Black |
| Handle material | Polyamid |
| Insert | Triangle |
| IP Rating | IP54 |
| Handle color | Black |
| Protective curtain | Is available |
The lock for the RZ L925.1.1.3 control unit, SW-10845, is a locking device with a rotary handle. It features a flip-up shutter. Designed for flat pull rods.
Equivalent to Mesan products,
Applications of the handle lock
Industrial electrical cabinets: electrical, wiring, control, server, telecommunications, floor-standing and wall-mounted.
Advantages of the polyamide lock for metal cabinets from RZ
- Strength and wear resistance.
- Safety: the plastic is non-conductive.
- Versatility: left- and right-hand opening.
- Dust protection for the keyway thanks to a dust cover.
Specifications for RZ L925.1.1.3 SW-10845
Housing:
material – polyamide with 30% glass fibre reinforcement,
width – 34 mm,
length – 160 mm.
Bolt:
bolt bend h: 8 mm,
bolt length L: 45 mm.
Locking system: single-point.
Mounting holes: 2 holes, 25 × 51 mm.
Insert type: triangular.
Fold-down cover: yes.
Contents of the rotary handle set
Assembled product: body with a flip-up handle, featuring a gear mechanism for flat rods, triangular insert, single-point bolt. Key not included.
The triangular key and flat rods are sold separately.
If you’re looking to buy control unit locks wholesale, visit the RZ-market online shop! Place your order now. We’ll arrange fast delivery to Europe.
