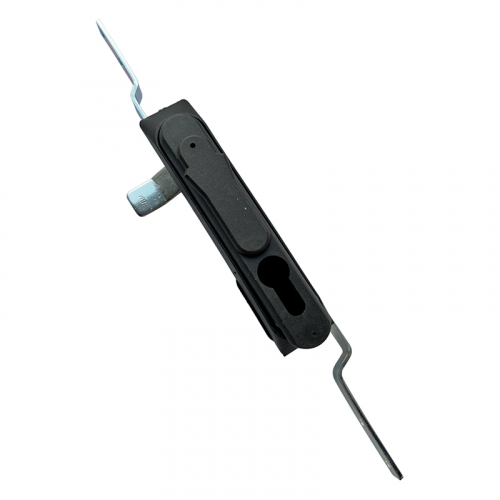

Control cabinet hardware RZ L925BC.1.1M.0 SW-10845, polyamide, without cylinder, h=8 mm, L=45 mm, with rod mechanism, for 1 lps

Control cabinet hardware RZ L925BC.1.1M.0 SW-10845 refers to industrial handle locks for electrical cabinets.

Features of the lock with a rotary handle

Single-point locking system. With a metal gear mechanism under the rod. Equipped with a hinged (rotary) shutter.

Application of the handle lock

Industrial electrical cabinets: control, server, telecommunications, electrical, electrical installation, floor-mounted, wall-mounted.

Advantages of RZ industrial hardware

• Strength, wear resistance.
• Safety: polyamide is not electrically conductive.
• Versatility: left and right opening.
• Dust protection for the key thanks to the curtain.
• Possibility to choose a cylinder at your discretion.

Characteristics of RZ L925BC.1.1M.0 SW-10845

Body material: polyamide with glass fibre (30%).

Cam material: steel.

Cam bend h: 8 mm.

Cam length L: 45 mm.

Mounting hole: 2 holes, 25x50 mm.

Insert: none.

Hole for cylinder with any insert provided.

Components

Assembled product: body with hinged handle, without cylinder, cam, mechanism for rods.

Cylinder sold separately. Flat rods sold separately.

If you are looking for wholesale control cabinet hardware, visit our online store RZ-market! Order a lock handle right now. We deliver to Europe.

You can also buy similar products with a cylinder; without a pull mechanism; for systems with different numbers of locking points.
