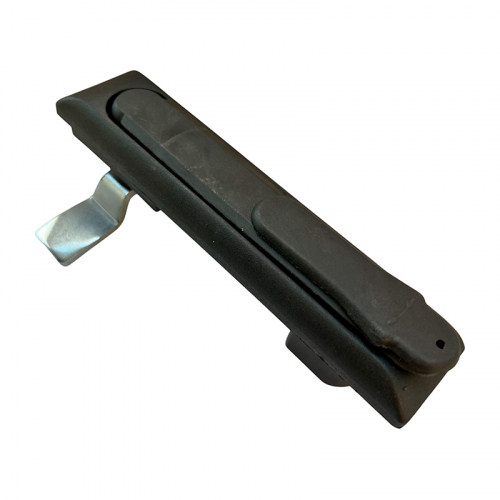

Hinged handles RZ 001-2-2-ISP, polyamide, ins. one key, h=12 mm, L=44 mm, for 1 lps, IP65, 1 key

Hinged handles RZ 001-2-2-ISP are accessories for electrical cabinets.

Video review of the hinged handle RZ 001-2-2-ISP

Application of lock with swing handle

• Electrical panels.
• Server and telecommunication cabinets.
• Transformer substations, etc.

Features of locks for network cabinets

• Designed for single-point locking system.
• Handle with safety shutter.

Advantages of hinged handles

• The solution is more economical than a product made entirely of metal, but still reliable.
• Safe in case of current leakage.
• Universal: left/right opening.

Characteristics of RZ 001-2-2-ISP

Material:

   body, handle - glass-filled polyamide;

   cam - steel.

Insert type: one key.

Cam type: single point.

Cam bend h: 12 mm.

Cam length L: 44 mm.

Mounting holes: 2 holes 25x50 mm. 25x50 mm.

Centre distance: 100 mm.

Degree of protection: IP65.

Colour: black.

Set

Complete product: body with hinged handle, cylindrical insert, cam. 1 metal key.

Buy hinged handles wholesale at the best price you can in our online shop. We will perform fast delivery across Europe.
