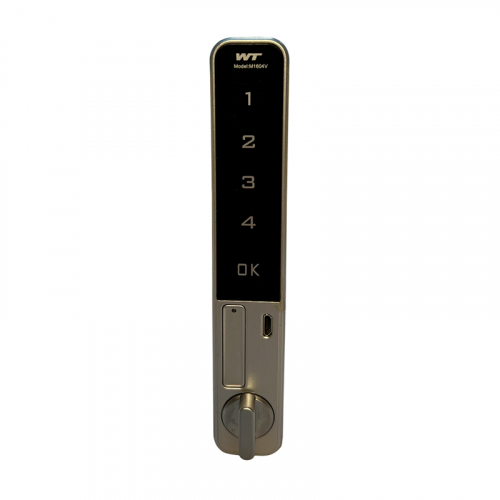

Code lock for drawers RZ M-1604L, Zn alloy, 4-digital code, sec. 10000, vertical, on thickness 0.6-20 mm, black/silver

Electronic code lock for drawers RZ M-1604L is a vertical locking device for furniture, which uses for locking a code typed manually on the dial panel of the device.

Features of the furniture code lock

• Private and public modes.
• Password is entered by both user and manager.
• Possibility to enter an incorrect password 4 times. An audible alarm is then sounded.
• Alarm in case of malfunction.
• Battery charge indicator. Insufficient charge - red light.
• Unlock indicator (green light).

Application of electronic lock

• Wooden and metal drawers in chests of drawers, drawers, for cabinet sections. Installed instead of furniture handles.
• Offices.
• Public premises: gyms, fitness centres, swimming pools, hotels, educational institutions, hospitals, etc.

Advantages of the narrow lock for 4 digits

• Modern design, mirror set panel.
• Easy to use.
• Unlocking via password. In non-standard cases opening by means of a mechanical needle.
• Significant secrecy (combinations of 4 digits).

Characteristics of RZ M-1604L

Dimensions: 146 x 25 x 15.5 mm.

Battery: CR2032, 1 pc.

Battery life cycle: 3000 openings/closures.

Dial pad: 4 digits, OK key.

Secrecy: 10000.

Operating temperature: -25...+55 °С.

Operating humidity (relative humidity): 10-85%.

Swivelling angle: 180°.

Door thickness: 0.6 - 20 mm.

Seat opening 141,8 x 20,8 mm.

Set

Without battery. Complete enclosure: face plate with pin and rear part. Cam with 2 pins. Metal needle for inserting the battery. Fasteners 3 pcs. Metal brackets for fixing the rear part 3 pcs. Studs 2 pcs.

To buy a code lock for boxes wholesale, fill out an application through the cart. Fast delivery across Europe.
