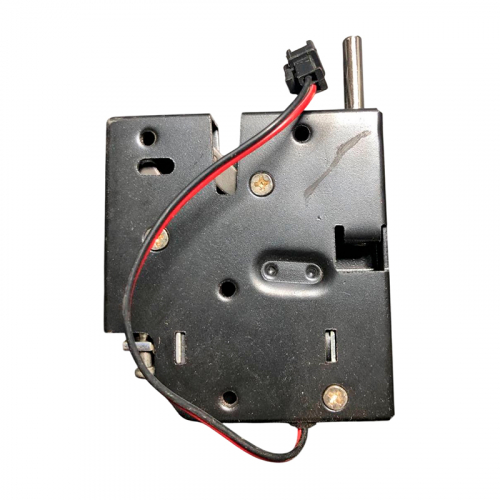

Electromechanical surface-mounted lock RZ EL01-25-1.P, steel, 1 connector, with pin

The electromechanical surface-mounted lock RZ EL01-25-1.P, which is operated via a code, is fitted to the metal compartments of parcel lockers. It is mains-powered.

Postal lockers are used for the automated delivery of parcels weighing up to 31 kg.

How the lock works

• It opens via an electrical impulse after a code is entered on the post office locker’s control panel. The sender assigns a code to each parcel.
• Power is required only for opening and closing. If the mains power is cut off, the lock will remain closed.

Application of the electromechanical surface-mounted lock

Designed for installation on automated post terminals.

Advantages of the lock for post terminals

• Simple installation.
• Two options for emergency opening.
• Compatible with standard wires and connectors.

Characteristics of RZ EL01-25-1.P

Material: carbon steel.

Coating: powder paint.

Power supply: from standard mains.

Housing colour: black.

Green wire – for signal, red and black – for power.

Power supply: 12V DC. Opening signal: +12V.

Complete set

Housing with pin, one connector with 2 wires.

Drawing

The additional drawing shows the threaded holes in red.

You can buy electromechanical surface-mounted locks wholesale on our website. Send us an enquiry. Please specify in your enquiry which configuration you require: with or without a latch. Alternatively, contact a sales manager.

Delivery throughout Europe.
