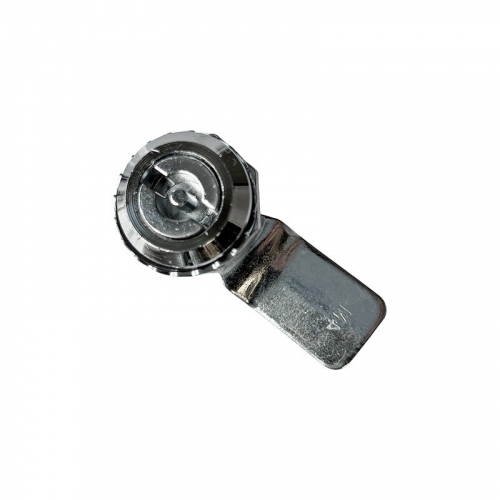

Lock for electrical panel RZ L181.A.1-10445, Zn alloy, ins. double bit 5 mm, h=4 мм, L=46 мм, external stop

Metal lock for electrical panel RZ L181.A.1-10445 is a locking mechanism for industrial applications.

Video review on lock for electrical panel RZ L181.A.1-10445

Application of the lock on electrical cabinets

The product is installed on metal bodies, boxes and structures, namely:

• electrical cabinets, including cabinets and telecommunication cabinets, server rooms (floor and suspended),
• switchboards and control panels,
• transformer substations (internal panels),
• medical equipment,
• equipment for food industry.

Features of mortise lock

• It has an external stop.
• Equipped with a locking ring for a tighter fit of the lock to the door.
• Has a high degree of protection.

Characteristics of RZ L181.A.1-10445

Body material, insert: zinc alloy.

Cam material: galvanised steel.

Insert type: double bit 5 mm.

Cam bend: 4 mm.

Cam bend angle: 45°.

Cam length L: 45 mm.

Thread height: 18.5 mm.

Seating hole: 20x22 mm.

Key locking in the open position: none.

Swivelling angle: 90°.

Set

Without spanner.

Key for this product must be purchased separately.

Buy wholesale the lock for electrical panel model RZ L181.A.1-10445 you can right now. Make an application in the shopping basket or call our manager. We do delivery to Europe.

We propose the same model of lock with cam bend 8 mm - RZ L181.A.1-10845, 0 mm - RZ L181.A.1-10045.
