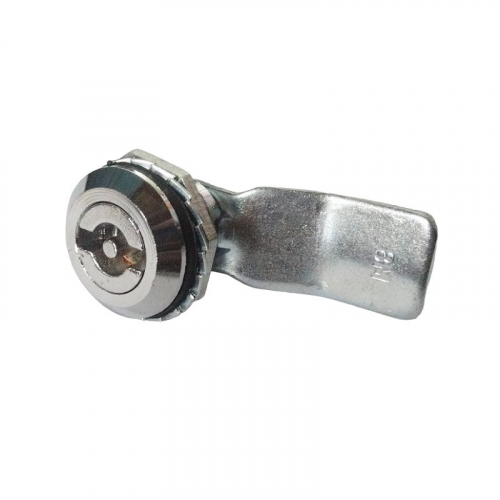

Control cabinet lock RZ L181.A.1-10645, zinc alloy, 5 mm butterfly insert, h=6 mm, L=46 mm, external stop

Control cabinet lock RZ L181.A.1-10645, zinc alloy, 5 mm butterfly insert, h=6 mm, L=46 mm, external stop

Product code: RZ L181.A.1-10645

Preorder

0.00 UAH

Price for 1 piece

Minimal order quantity 24 pcs

Quantity: 1

1C code: RZ0000014

Categories:

Quarter-turn locks

Delivery

Self service	8:00 - 17:00 (Kyiv)	Free of charge
Sending by DHL	Same day ship out upon receipt of payment to the account before 12:00 p.m. (Kyiv)	From 10.99 €

Payment

Card payment

Guarantee

Exchange / Return of the Goods within 7 days

The seller guarantees the packaging of the ordered product, which will ensure the integrity and safety of its commercial type.

Characteristics
Manufacturer	RZ
Country of manufacture	China
Body material	Zinc alloy chrome plated
Effective length	18 mm
Body color	Chrome
Insert	Double bit
Lock type	Standard
Insert material	Zinc alloy chrome plated
IP Rating	IP54

The control cabinet lock RZ L181.A.1-10645 is a locking device designed for industrial use.

Applications of the lock for switchboard equipment

The product is fitted to metal enclosures, drawers and structures, namely:

electrical cabinets, including telecommunications cabinets and server cabinets (floor-standing and suspended),
control panels and switchboards,
transformer substations (internal panels),
medical equipment,
equipment for the food industry.

Features of the control panel lock

It has an external stop.
It is fitted with a retaining ring to ensure a tighter fit of the lock against the door.
Curved bolt.

Characteristics of the RZ L181.A.1-10645 rotary latch lock

Housing and insert material: zinc alloy.

Cam material: galvanised steel.

Cylinder type: 5 mm double bit.

Cam bend: 6 mm.

Cam bend angle: 45°.

Cam length L: 46 mm.

Height at the thread: 18 mm.

Mounting hole: 20 × 22 mm.

Key retention in open position: no.

Rotation angle: 90°.

Complete set

Key not included.

Keys for this product must be purchased separately.

You can buy the control cabinet lock, model RZ L181.A.1-10645, in bulk right now. Place your order via the shopping basket or call our sales manager. We deliver to Europe.

The same lock model is available with a 0 mm bolt bend – RZ L181. A.1-10045, 2 mm – RZ L181.A.1-10245, 4 mm – RZ L181.A.1-10445, 8 mm – RZ L181.A.1-10845.
