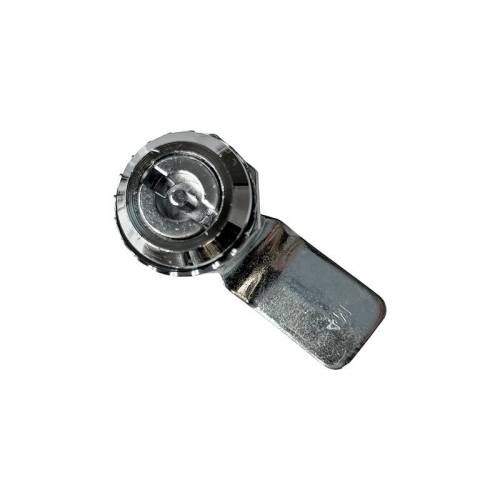

Control panel lock RZ L181.A.1-10245, zinc alloy, 5 mm butterfly latch, h=2 mm, L=46 mm, external stop

The control panel lock RZ L181.A.1-10245 is a locking mechanism designed for industrial use.

Applications of the control panel lock

The product is fitted to metal enclosures, cabinets and structures, namely:

• electrical cabinets, including telecommunications cabinets and server cabinets (floor-standing and suspended),
• control panels and switchboards,
• transformer substations (internal panels),
• medical equipment,
• equipment for the food industry.

Features of the twist-and-press lock

• It has an external stop.
• It is fitted with a retaining ring to ensure a tighter fit of the lock against the door.
• Curved bolt.

Characteristics of RZ L181.A.1-10245

Housing and insert material: zinc alloy.

Cam material: galvanised steel.

Cylinder type: 5 mm double bit.

Cam bend: 2 mm.

Cam bend angle: 45°.

Cam length L: 46 mm.

Thread height: 18 mm.

Mounting hole: 20 × 22 mm.

Key retention in open position: no.

Rotation angle: 90°.

Complete set

Key not included.

Keys for this product must be purchased separately.

You can buy the control panel lock, model RZ L181.A.1-10245, in bulk right now. Place your order via the shopping basket or call our sales manager. We deliver to Europe.

The same lock model is available with a 0 mm bolt bend – RZ L181. A.1-10045, 4 mm – RZ L181.A.1-10445, 6 mm – RZ L181.A.1-10645, 8 mm – RZ L181.A.1-10845.
