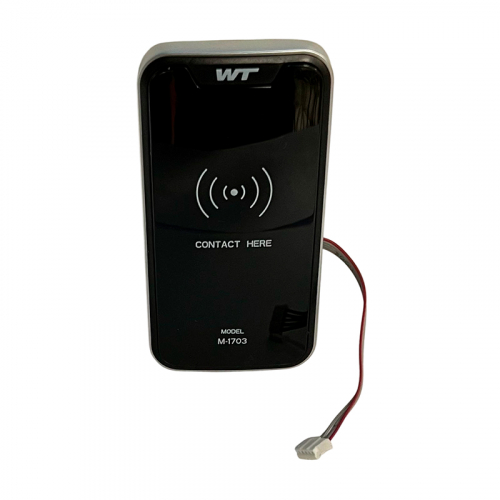

Lock with RFID card RZ M-1703-IC, furniture

Lock with RFID card RZ M-1703-IC is a locking device for furniture, which uses contactless electronic card of RFID type for unlocking.

Features of electronic furniture lock

• Public and private mode.
• 2 types of cards: control card (manager), guest card.
• Maximum number of management cards - 3 pcs.
• Maximum number of guest cards - 27 pcs.
• If an incorrect card is entered, an audible alarm sounds. The lock is blocked.
• Insufficient power supply indication (red light). If the power supply is insufficient, the lock is blocked.
• Unlocked lock indication (green light).

RFID lock application

Wooden and metal cabinets, lockers. Installation on doors and doors.

• Office furniture.
• Clothes lockers / lockers in gyms, fitness centres, swimming pools, hotels, educational institutions, hospitals, etc.
• Industrial furniture.

Advantages of the lock with RFID card

• Modern design: mirrored black dial panel.
• Contactless opening, convenient in poor lighting conditions.
• Possibility to connect an external power supply (type C port).
• High secrecy.
• Suitable for rooms with high humidity.

Characteristics of RZ M-1703-IC

Material: zinc alloy/plastic.

Dimensions: 107 x 56 x 12.5 mm.

Power supply: 4 AA finger batteries.

Battery life: 6000 times.

Opening/closing: by RFID card.

Card reading distance: 5-10 mm.

Operating humidity (relative humidity): 10 to 85%.

Operating temperature: -25 ... +55 ° C.

Mounting: on fasteners.

Installation orientation: vertical.

Set

Without battery. Front part with a touch panel and a loop. Response part. Fasteners. Metal needle for password reset (2 pcs.). 2 RFID cards. Instructions in Chinese.

To buy a lock with RFID card wholesale, fill out an application via cart. Fast delivery in Europe.
